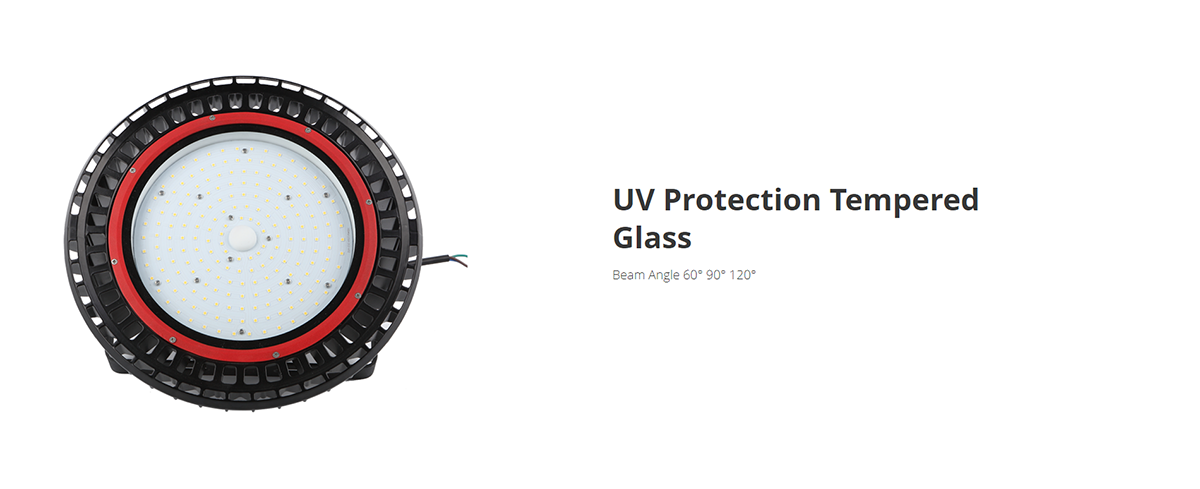

A2201 UFO High Bay

A2201 LED UFO High Bay adopts qualified super bright LED as light source, which is stable, long life and no UV & IR emission. The special designed aluminum housing is stylish and fashionable with excellent heat management. Integrated with Meanwell HBG series driver, powered by low voltage constant current driver, which is safety, energy saving and long life. IP65 waterproof and 5 years guarantee.

Application: outdoor lighting, Advertising lighting, Site lighting, Decorative lighting, Tunnel lighting, Square lighting, Factory lighting etc.





Product Display

PARAMETER

DOWNLOAD

Product Tags

TECHNICAL SPECIFICATIONS

Housing Aluminum housing
Finish Black
Mounting Surface mount brackets
Cover Glass cover

ELECTRICAL SPECIFICATIONS

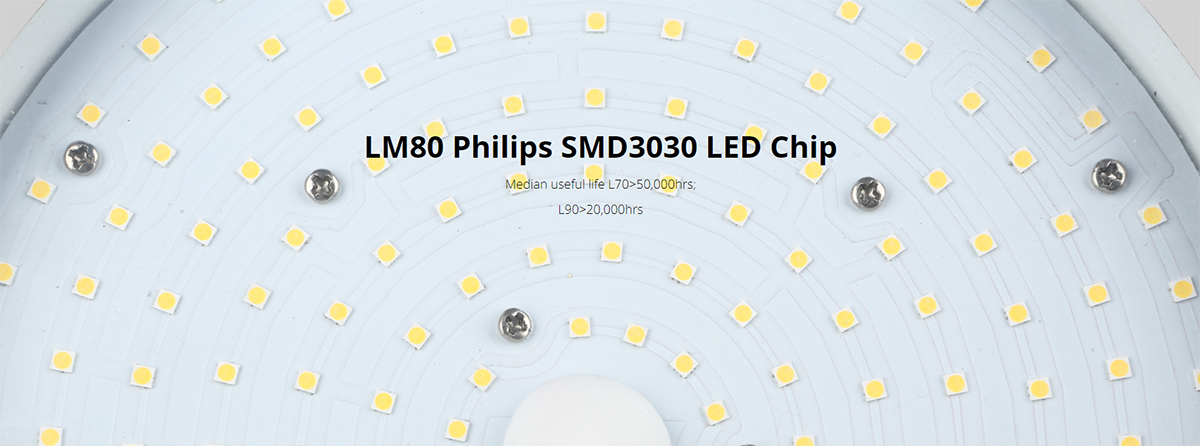

LED Engine High Quality SMD3030 Chip
Available Watts 80w, 100w, 120w, 150w, 200w, 250w
Power Factor >0.95
Ambient Temperature -20°C ~ +40°C
Available Voltages AC100-277V 50/60Hz standard

OPTICAL & PERFORMANCE SPECIFICATIONS

Lumen Output 80w: 10400lm | 100w: 13000lm | 120w: 15600lm |
150w: 19500lm | 200w:26000lm | 250w:32500lm
IP Rating IP65
Beam Angles 120°
CRI >80
Efficiency 130 lm/w
CCT 3000~6500K
Certifications SAA, C-Tick, CE, RoHS

OPTIONS

Function 1-10V Dimming | Microwave Sensor | Photocell | Emergency
Efficiency 140lm/w, 160lm/w
Installation Suspension, Adjustable

ADVANTAGES

Lighting Even illumination; Non-glare; No flick
Cover UV protection Lens
Cost Cost effective
IP Rating IP65
Driver Meanwell HBG driver, flicker-free
Warranty 5 Years warranty
Installation Easy to install and wiring

22011

2201
